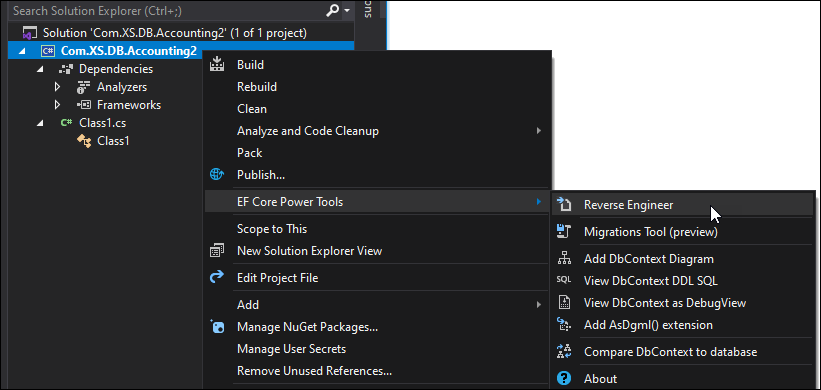

- 2.2. Launch the Tool

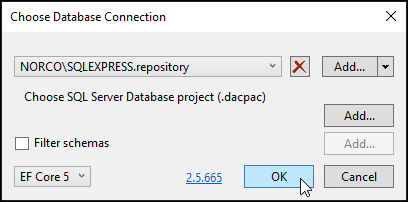

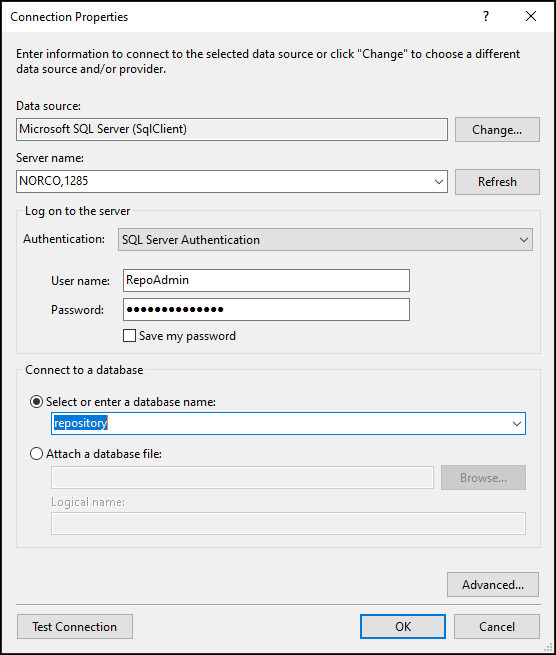

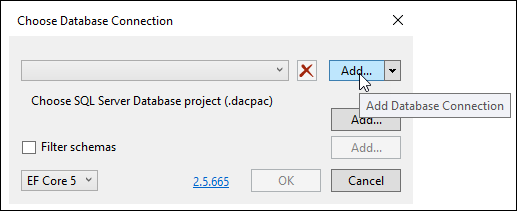

  - 2.2.1. Create DB Connection

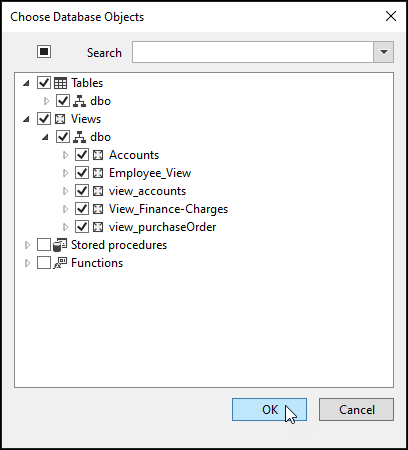

  - 2.2.2. Select DB Objects

1. Reverse Engineer DB (Comand Line Method)

This is the command line version.

Microsoft doc is here.
Right mouse click on the project and launch the Open In Terminal console window.

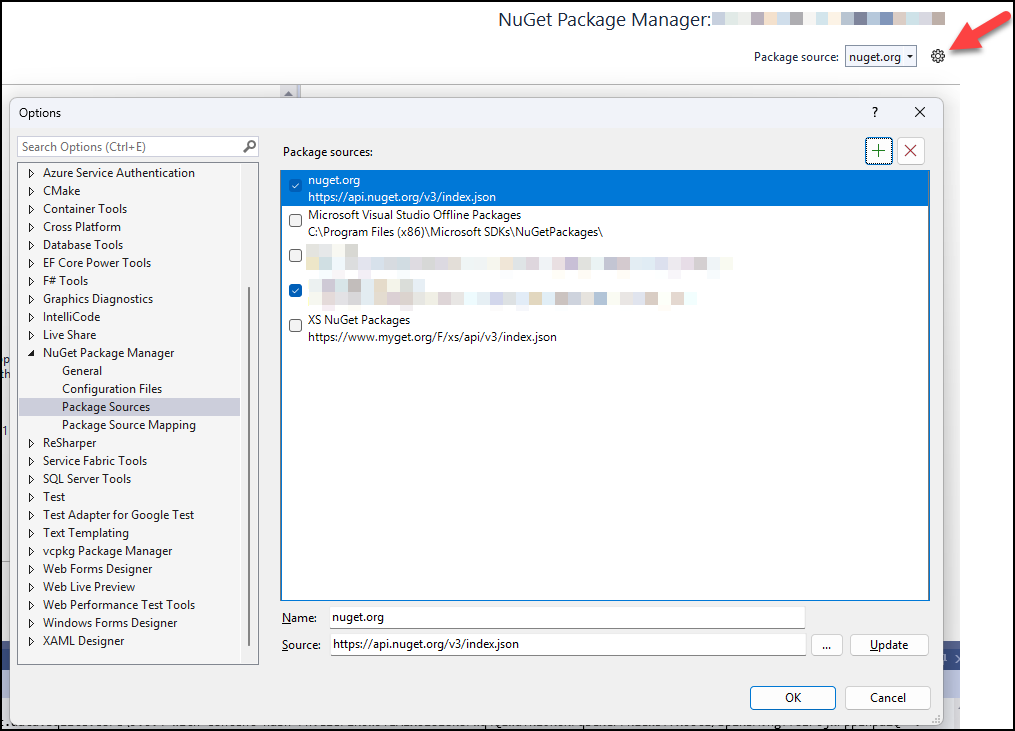

You may need to first adjust NuGet package sources so that the downloads will succeed.
Install EF Core Tools. Doc is here.
```
dotnet tool install --global dotnet-ef
```

Confirm installation

dotnet ef

Example output

                     _/\__
               ---==/    \\
         ___  ___   |.    \|\
        | __|| __|  |  )   \\\
        | _| | _|   \_/ |  //|\\
        |___||_|       /   \\\/\\

Entity Framework Core .NET Command-line Tools 9.0.2

Install EF packages:
Example
```
dotnet add package Microsoft.EntityFrameworkCore
```
1. Microsoft.EntityFrameworkCore
2. Microsoft.EntityFrameworkCore.Design
3. Microsoft.EntityFrameworkCore.SqlServer (for MSSQLServer DB)
4. Microsoft.EntityFrameworkCore.Sqlite (for SQLite DB)
5. Microsoft.EntityFrameworkCore.OleDb (for Excel)
6. Oracle.EntityFrameworkCore (for Oracle DB)

Run one of the following to Scaffold a DB:

Example for SQL Server

dotnet ef DBContext scaffold  "Data Source=p-ubuntu-norco\sqlexpress,1285;database=repository;TrustServerCertificate=True;User Id=<UserID>;Password=<Password>;" Microsoft.EntityFrameworkCore.SqlServer --context-dir DBContext --context <context name>Context --output-dir DBModels --use-database-names --no-onconfiguring --no-build --force (1)

Example for SQL Lite

dotnet ef DBContext scaffold  "Data Source=C:\Users\mattosd\Downloads\Portal_DB.db" Microsoft.EntityFrameworkCore.Sqlite --context-dir DBContext --context <context name>Context --output-dir DBModels --use-database-names --no-onconfiguring --no-build --force (1)

1	Replace <context name> with a name for the DBContext e.g., database name

To use a trusted connection:

Remove

User Id=<UserID>;Password=<Password>;

Replace with

Trusted_Connection=True;

To specify individual Table(s), add:

--table <table name> --table <table name 2>

2. Reverse Engineer DB (Gui Method)

2.1. Download

You’ll need to shutdown all instances of Visual Studio before installing the following:

Download from here and then run the EF_Core_Power_Tools_v2.6.xxx.vsix installer.
Download from here and then run the EF_Core_Power_Pack_v2.6.xxx.vsix installer.
Download from here and then run the Oracle.VsDevTools.17.0.vsix installer.
Download from here and then run the MermaidEditor.vsix installer.
