XS Blazor UI Components - Comsumers Guide

Table of Contents

1. Synopsis
2. Requirements
- 2.1. .NET 6.x
- 2.2. Visual Studio 2022
3. Parent Project Setup
4. Web Server Config
- 4.1. .Net

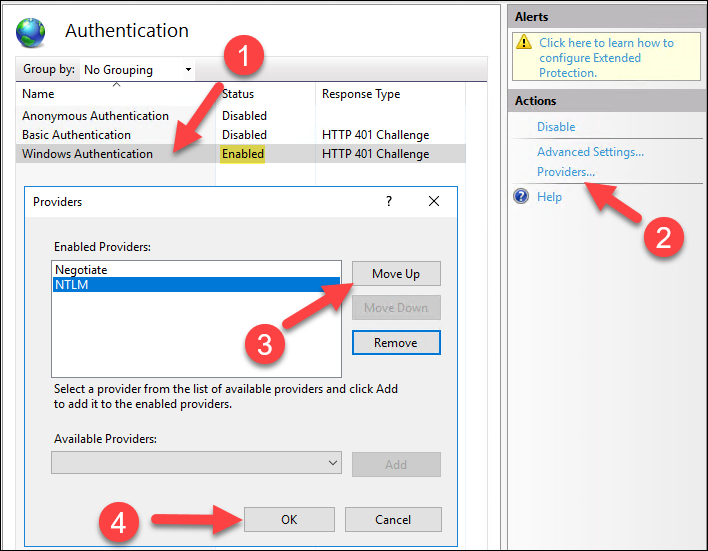

- 4.2. Microsoft IIS Authentication
5. Run in a Docker Container
- 5.1. Blazor Web Assembly
- 5.2. Blazor Web Server

1. Synopsis

This document is intended for end-user developers who will write code to consume the XS.Lib.Blazor.UIComponents library.

2. Requirements

2.1. .NET 6.x

.Net 6.x sdk

2.2. Visual Studio 2022

Refer to the Visual Studio Install doc.

3. Parent Project Setup

This is the setup for the project that consumes the Com.xx.Lib.UI.Blazor (XS.Lib.Blazor.UIComponents) component library.

3.1. Create new VS Project 7.x

Create a new project using the Blazor Server App Empty template.
- Target: .NET 7.x
- Authentication Type: Windows
- Check Configure for HTTPS

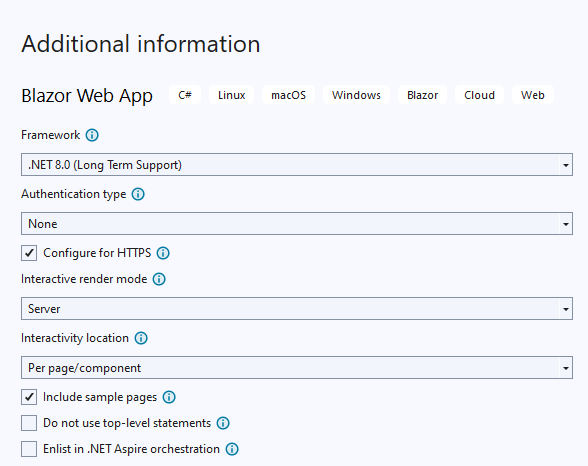

3.2. Create new .NET v8.0 VS Blazor Web App

Blazor-Web-App-New-Project

3.3. Install the XS NuGet Package

The XS.Lib.Blazor.UIComponents NuGet package is hosted at the remote MyGet central package repository.
In order to use the XS.Lib.Blazor.UIComponents NuGet package Visual Studio needs to be configured to retrive packages from MyGet.
After the MyGet source has been configured, the package can then be accessed and downloaded.

3.3.1. Add XS `MyGet` Package Source

This step only needs to be done once at the creation of your project.

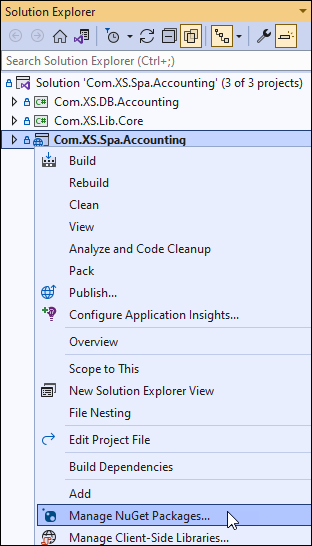

Right mouse click on the project file and launch Manage NuGet Package Explorer:
Click the Settings button as shown:

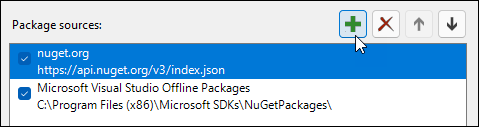

Click the + button to add a new package source:

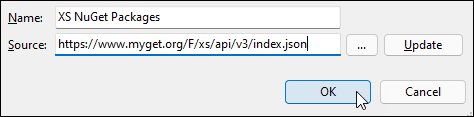

Overwrite the initial text with the MyGet package source details:

Initial package source text
1. Name: XS NuGet Packages
2. Source: https://www.myget.org/F/xs/api/v3/index.json

  Updated with MyGet Package Source
3. Click the OK button to add the new package source.

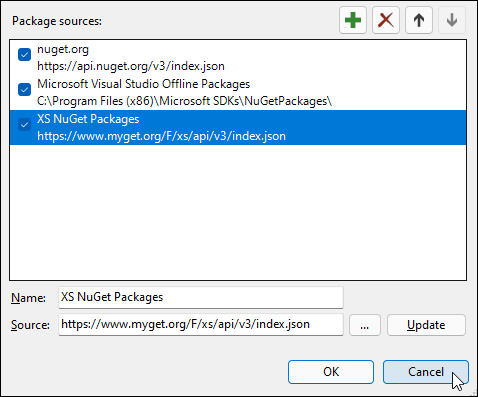

Clicking the Settings button again will show the newly created package source.

New MyGet Package Source
Click the Cancel button to exit the package manager settings.

3.3.2. Install the `XS.Lib.Blazor.UIComponents` NuGet Package

There are two ways to install the package:

Method 1: Via the Package Manager Console cmdline:
1. Launch via Tools NuGet Package Manager Package Manager Console

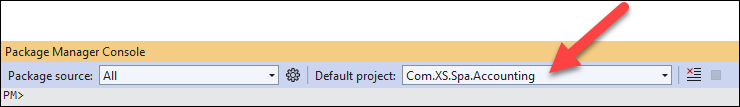

2. Confirm the Default project: is set to the project where the package should be installed.

  Example Default Project
3. Now execute:
  Install-Package XS.Lib.Blazor.UIComponents -Version 0.0.1-rc.9 -Source https://www.myget.org/F/xs/api/v3/index.json (1)
  1 The value for the -Version parameter should match an existing version.
Method 2: Via Gui

TBD
Now the NuGet package is installed.

Click to show image…

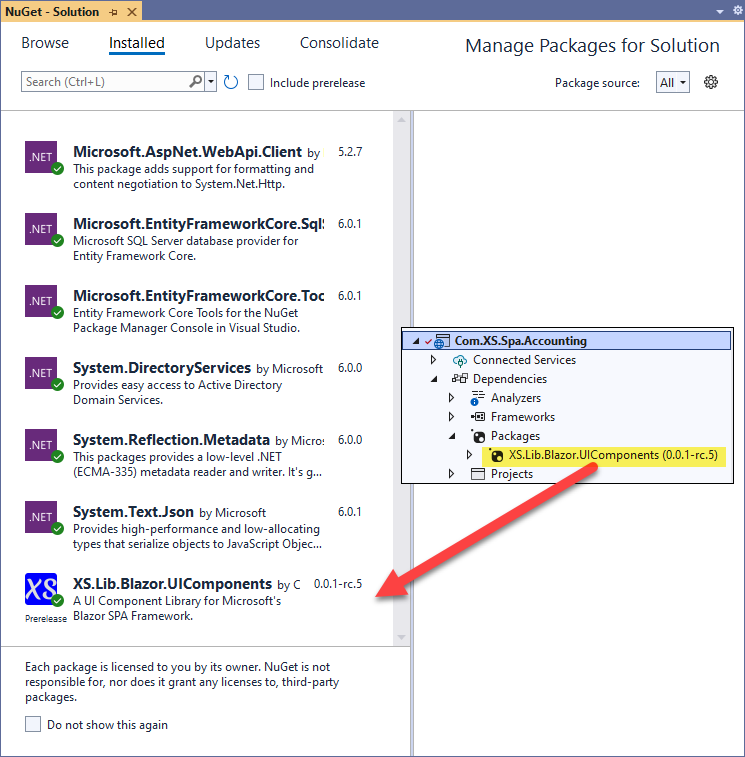

NuGet Package is Installed

3.3.3. Updating the `XS.Lib.Blazor.UIComponents` NuGet Package Version

To keep up to date with the latest enhancements and bug fixes the package can be updated on demand.
When new versions are released, start the update via:
1. Right mouse click on the project and select Manage NuGet Packages…
2. Change the Package source: to XS NuGet Packages.

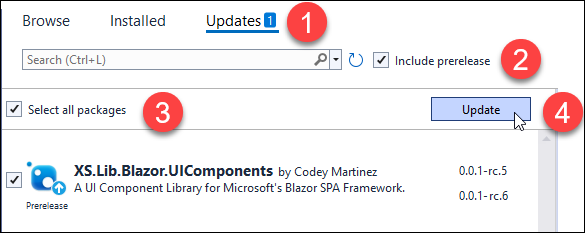

Now update the package via the following steps:
1. Click on Updates tab.
2. Optionally check the Include prerelease checkbox.
3. Check the Select all packages checkbox.
4. Click the Update button which will in this example upgrade the NuGet package version from 0.0.1-rc.5 to 0.0.1-rc.6.

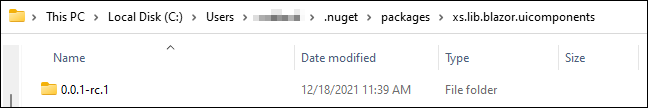

3.3.4. Package Cache

The actual package data will be cached here within this folder.
```
C:\Users\<username>\.nuget\packages\xs.lib.blazor.uicomponents
```
Each individual version of the package will be contained within a subfolder:

Cached XS Blazor component package with v0.0.1-rc.1

3.4. Custom UI Component Library Integration

Add the following to the parent project’s Imports.razor file which can be found in the root of the parent project:
```
@* For XS.Lib.Blazor.UIComponents *@
@using Com.XS.Lib.UI.Blazor
@using Com.XS.Lib.UI.Blazor.XS_Components
```

Remove unnecessary style sheets, folders, favicon, and any other files.

in the www\css folder remove unnecessary style sheets.

in the Pages\_Host.cshtml file remove any links to unnecessary style sheets, e.g.:

<link rel="stylesheet" href="css/bootstrap/bootstrap.min.css" />
<link href="css/site.css" rel="stylesheet" />
<link href="Com.XS.Spa.Accounting3.styles.css" rel="stylesheet" />
<link rel="icon" type="image/png" href="favicon.png"/>

Add the following to the Pages\_Host.cshtml file:

After the <!DOCTYPE html>, update the following tag:
```

<html lang="en" class="">
```
Within the <head> section adjust/add the webpage title:
```
<title>My Awesome Web App</title>  (1)
```
1 Provide an applicable title.

Add the following within the <head> section after <base href="~/" />:

    <!--Start End User CSS-->
    <link href="css/StyleSheet.css" rel="stylesheet" type="text/css" />
    <!--Finished End User CSS-->

    <!-- Custom XS UI Components CSS -->
    <link href="_content/XS.Lib.Blazor.UIComponents/css/XS_Components.min.css" rel="stylesheet" type="text/css" />
    <!-- End Custom XS UI Components CSS -->

    <!--For PWA support-->
    <meta name="theme-color" content="#7F7F7F" />
    <link rel="apple-touch-icon" href="/apple-touch-icon.png" crossorigin="use-credentials" />
    <link rel="icon" type="image/png" sizes="32x32" href="/favicon-32x32.png">
    <link rel="icon" type="image/png" sizes="16x16" href="/favicon-16x16.png">
    <link rel="manifest" href="/site.webmanifest" crossorigin="use-credentials" />
    <!--End PWA support-->

Add the following within the <body> section before the render-mode statement:

    <!-- Custom XS UI Components JavaScript -->
    <script src="_content/XS.Lib.Blazor.UIComponents/js/XS_Components.js"></script>
    <!-- End Custom XS UI Components JavaScript -->

    <!-- For PWA support -->
    <script>navigator.serviceWorker.register('service-worker.js');</script>
    <!-- End PWA support -->

3.5. Add Progressive Web Application `(PWA)` Support

Note only the following limited set of PWA features are supported for a Blazor Server app:
1. App installation is supported.
2. There is no off-line mode support.

3.5.1. Create Favicons

Use the Favicon IO Generator to create the favicons.
- Use the following as a guide:

  Property Value

  Font Family

  Merienda 1

  Font Size

  100

  Font Color

  #DDD

  Background Color

  #00F
After creating the favicons, download them as a .zip file.
Extract all files and add them into the wwwroot folder.

Property	Value
Font Family	Merienda 1
Font Size	100
Font Color	#DDD
Background Color	#00F

3.5.2. Create an Offline Page

In the project’s wwwroot folder create an offline.html page. Complete this page with content that is relevant to your site. This page will be displayed when your site is offline.
```
<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8" />
    <title>Site is offline</title>
</head>

<body>

</body>

</html>
```

3.5.3. Create a Manifest File

In the project’s wwwroot folder edit the site.webmanifest file with the following content.

Expand for site.webmanifest source

{
    //https://web.dev/window-controls-overlay/
    //https://learn.microsoft.com/en-us/microsoft-edge/progressive-web-apps-chromium/how-to/window-controls-overlay
    //https://www.youtube.com/watch?v=NvClp35dFVI
    "name": "My App v2.1",                         (1)
    "short_name": "My App",                        (2)
    "description": "My Progressive Web App (PWA)", (3)
    "start_url": "./",
    "display": "standalone",
    "display_override": [ "window-controls-overlay" ],
    "orientation": "any",
    "scope": "./",
    "background_color": "#fff",
    "theme_color": "#fff",
    "icons": [
        {
            "src": "apple-touch-icon.png",
            "type": "image/png",
            "sizes": "180x180"
        },
        {
            "src": "android-chrome-192x192.png",
            "type": "image/png",
            "sizes": "192x192"
        },
        {
            "src": "android-chrome-512x512.png",
            "type": "image/png",
            "sizes": "512x512"
        },
        {
            "src": "path/to/maskable_icon.png", (4)
            "sizes": "196x196",
            "type": "image/png",
            "purpose": "any maskable"
        }
    ]
}

1	Update this.
2	Update this but must be under 12 characters.
3	Update this.
4	Update this.

3.5.4. Create a Service Worker JavaScript file

In the project’s wwwroot folder create a service-worker.js file with the following content:

// In development, always fetch from the network and do not enable offline support.
// This is because caching would make development more difficult (changes would not
// be reflected on the first load after each change).
self.addEventListener('fetch', () => { });

In the project’s wwwroot folder create a service-worker.published.js file with the following content:

Expand for service-worker.published.js source

// Caution! Be sure you understand the caveats before publishing an application with
// offline support. See https://aka.ms/blazor-offline-considerations

self.importScripts('./service-worker-assets.js');
self.addEventListener('install', event => event.waitUntil(onInstall(event)));
self.addEventListener('activate', event => event.waitUntil(onActivate(event)));
self.addEventListener('fetch', event => event.respondWith(onFetch(event)));

const cacheNamePrefix = 'offline-cache-';
const cacheName = `${cacheNamePrefix}${self.assetsManifest.version}`;
const offlineAssetsInclude = [/\.dll$/, /\.pdb$/, /\.wasm/, /\.html/, /\.js$/, /\.json$/, /\.css$/, /\.woff$/, /\.png$/, /\.jpe?g$/, /\.gif$/, /\.ico$/, /\.blat$/, /\.dat$/];
const offlineAssetsExclude = [/^service-worker\.js$/];

async function onInstall(event) {
    console.info('Service worker: Install');

    // Fetch and cache all matching items from the assets manifest
    const assetsRequests = self.assetsManifest.assets
        .filter(asset => offlineAssetsInclude.some(pattern => pattern.test(asset.url)))
        .filter(asset => !offlineAssetsExclude.some(pattern => pattern.test(asset.url)))
        .map(asset => new Request(asset.url, { integrity: asset.hash }));
    await caches.open(cacheName).then(cache => cache.addAll(assetsRequests.map(url => new Request(url, { credentials: 'same-origin' }))));
}

async function onActivate(event) {
    console.info('Service worker: Activate');

    // Delete unused caches
    const cacheKeys = await caches.keys();
    await Promise.all(cacheKeys
        .filter(key => key.startsWith(cacheNamePrefix) && key !== cacheName)
        .map(key => caches.delete(key)));
}

async function onFetch(event) {
    let cachedResponse = null;
    if (event.request.method === 'GET') {
        // For all navigation requests, try to serve index.html from cache
        // If you need some URLs to be server-rendered, edit the following check to exclude those URLs
        const shouldServeIndexHtml = event.request.mode === 'navigate';

        const request = shouldServeIndexHtml ? 'index.html' : event.request;
        const cache = await caches.open(cacheName);
        cachedResponse = await cache.match(request);
    }

    return cachedResponse || fetch(event.request);
}

3.6. Logs Directory

3.6.1. Publishing

Log files directory.
- Create a logs folder in the root of the project.
- If the log files folder is empty, it will not be published to the target server. To remedy this:
  - Create a .gitkeep file in this folder. Note that this is not an actual git command - it simply places a file in the folder which keeps it from being empty.
  - Right click on this file and choose Properties
  - In the Properties window, change the Copy to Output Directory property to Copy if Newer.

3.6.2. Git

Log files
- While debugging on the desktop the logs folder will fill up with log files and you don’t want to have to delete them each time prior to committing the repo to git.
- If you add the following two entries to the repo’s (this is not your project’s folder) .gitignore file those log files will not be part of git commits:
  # Exclude Log files *_out.xml *_err.xml

3.7. Create Test Pages

3.7.1. Index.razor

Edit the Pages\Index.razor file:

Expand for Pages\Index.razor source

@page "/"
@using Com.XS.Lib.Core

@inject IJSRuntime JS;

<XS_PageTitle><strong>Home</strong></XS_PageTitle>

<XS_Alert @ref="MyAlert" ThePageContent="@MyPageContent" />

<XS_Modal @ref="MyModal" RefID="Modal_Test" BodyHTML="@MyModalBodyHTML" ShowCloseButton="true" VerticalAlignment=@MyModalPos Height="260" Width="450">
    <XS_Modal_Header>
        <XS_Header Size="XS_CSS_HeaderSize.H4">@((MarkupString)MyModalHeaderText)</XS_Header>
    </XS_Modal_Header>
    <XS_Modal_Body>@MyModalBodyText</XS_Modal_Body>
    <XS_Modal_Footer>Bottom Footer</XS_Modal_Footer>
</XS_Modal>

<XS_Modal @ref="MyIcon_Modal" RefID="Icon_Modal" BodyHTML="@MyModalBodyHTML" ShowCloseButton="true" Height="230" Width="416">
    <XS_Modal_Header>
        <XS_Header Size="XS_CSS_HeaderSize.H4">@MyIconModal_HeaderText</XS_Header>
    </XS_Modal_Header>
    <XS_Modal_Body>
        <XS_IconSVG IconName="@MyIconModal_Body" IconSize="92" Color="XS_CSS_Color.Primary" />
    </XS_Modal_Body>
</XS_Modal>

<XS_Page_Content @ref="MyPageContent">

    <XS_TabHorizontal>
        <XS_TabList>
            <XS_Tab Label="Entra ID" IconName="XS_IconName_SVG.AzureLogo_FluentUI">
                <XS_Panel Panel_Body_Content_Center="false">
                    <XS_Panel_Header>Roles for @UserName</XS_Panel_Header>
                    <XS_Panel_Body>
                        <ul>
                            @if (HasAdminRole)
                            {
                                <li><XS_IconSVG IconSize="30" IconName="XS_IconName_SVG.thumb_up_black_24dp_GoogleIcon" Color="XS_CSS_Color.Success" MarginRight="XS_CSS_SpacingSize.X2"></XS_IconSVG>Has Admin Role</li>
                            }
                            else
                            {
                                <li><XS_IconSVG IconSize="30" IconName="XS_IconName_SVG.sad_circle_SVGRepo" Color="XS_CSS_Color.Danger" MarginRight="XS_CSS_SpacingSize.X2"></XS_IconSVG>Does not have Admin Role</li>
                            }
                            <li></li>
                            @if (HasReadOnlyRole)
                            {
                                <li><XS_IconSVG IconSize="30" IconName="XS_IconName_SVG.thumb_up_black_24dp_GoogleIcon" Color="XS_CSS_Color.Success" MarginRight="XS_CSS_SpacingSize.X2"></XS_IconSVG>Has Read-only Role</li>
                            }
                            else
                            {
                                <li><XS_IconSVG IconSize="30" IconName="XS_IconName_SVG.sad_circle_SVGRepo" Color="XS_CSS_Color.Danger" MarginRight="XS_CSS_SpacingSize.X2"></XS_IconSVG>Does not have Read-only Role</li>
                            }
                        </ul>
                    </XS_Panel_Body>
                    <XS_Panel_Footer>@PreferredUserName</XS_Panel_Footer>
                </XS_Panel>
            </XS_Tab>
            <XS_Tab Label="SVG Icons" IconName="XS_IconName_SVG.images_Bootstrap">
                <div style="display:inline-flex;flex-wrap:wrap;flex-direction:row;justify-content:center;overflow:auto;resize:vertical;height:500px;">
                    @foreach (XS_IconName_SVG anIcon in Enum.GetValues(typeof(XS_IconName_SVG)))
                    {
                        <XS_Panel IsPlain="false" MarginAll="XS_CSS_SpacingSize.X3" Width="315" Panel_Header_Content_Center="true" Panel_Body_Content_Center="true">
                            <XS_Panel_Header>
                                @anIcon.ToString()
                            </XS_Panel_Header>
                            <XS_Panel_Body>
                                <XS_IconSVG IconName="anIcon"
                                            Color="XS_CSS_Color.Primary"
                                            IconSize="24"
                                            OnClick="@(() => ClickSVGIcon(anIcon))" />
                            </XS_Panel_Body>
                        </XS_Panel>
                    }
                </div>
            </XS_Tab>
            <XS_Tab Label="Icon Browser" IconName="XS_IconName_SVG.images_Bootstrap">
                <XS_IconBrowser></XS_IconBrowser>
            </XS_Tab>
            <XS_Tab Label="Text Boxes" IconName="XS_IconName_SVG.Stack_FluentUI">

            </XS_Tab>
            <XS_Tab Label="Tooltips" IconName="XS_IconName_SVG.info_circle_duo_tone_SVGRepo">
                <div style="display:block;margin:0 auto;padding:10px;">
                    <XS_Label>
                        Tooltip positioned Above
                        <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Top">Tooltip positioned <strong><em>Above</em></strong> the icon</XS_TooltipIcon>
                    </XS_Label>
                    <br />
                    <br />
                    <XS_Label>
                        Tooltip positioned Below
                        <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Bottom">Tooltip positioned <em><strong>Below</strong></em> the icon</XS_TooltipIcon>
                    </XS_Label>
                    <br />
                    <br />
                    <XS_Label>
                        <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Left">Tooltip positioned to the <em><strong>Left</strong></em> of the icon</XS_TooltipIcon>
                        Tooltip positioned the Left
                    </XS_Label>
                    <br />
                    <br />
                    <XS_Label>
                        Tooltip positioned the Right
                        @* <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Right" Width="400">Tooltip positioned to the <em>Right</em> of the icon</XS_TooltipIcon> *@
                        <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Right" WidthToolTip="400">
                            <XS_Panel>
                                <XS_Panel_Header><XS_Header Size="XS_CSS_HeaderSize.H4">Nested Panel</XS_Header></XS_Panel_Header>
                                <XS_Panel_Body>Tooltip positioned to the <em><strong>Right</strong></em> as a nested panel</XS_Panel_Body>
                            </XS_Panel>
                        </XS_TooltipIcon>
                    </XS_Label>
                </div>
            </XS_Tab>
            <XS_Tab Label="ProgressBar" IsDefault="false" IconName="XS_IconName_SVG.ProgressRingDots_FluentUI">
                <div style="display:block;padding:10px;">
                    <XS_Pill Color="XS_CSS_Color.Info" HelpText="Progress Bar Countdown">@pill_progressTest_text</XS_Pill>
                    <br />
                    <XS_ProgressBar @ref="progressBar_main" Max="5" Value=@progress_value HelpText="Progress Bar Test"></XS_ProgressBar>
                    <br />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 0%" OnClick="@(async () => { await SetProgress(0); })" HelpText="Click to set to 0" />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 20%" OnClick="@(async () => { await SetProgress(1); })" />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 40%" OnClick="@(async () => { await SetProgress(2); })" />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 60%" OnClick="@(async () => { await SetProgress(3); })" />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 80%" OnClick="@(async () => { await SetProgress(4); })" />
                    <XS_Button Color="XS_CSS_Color.Info" ButtonText="Set to 100%" OnClick="@(async () => { await SetProgress(5); })" />
                    <XS_Button Color="XS_CSS_Color.Info" IconName="XS_IconName_SVG.hourglass_Bootstrap" ButtonText="Run" IsBusy=@_startTimer_isDisabled IsDisabled=@_startTimer_isDisabled OnClick="@StartProgressTimer" HelpText="Click to simulate progress..."></XS_Button>
                </div>
            </XS_Tab>
            <XS_Tab Label="Modals" IsDefault="true" IconName=XS_IconName_SVG.window_frame_SVGRepo HelpText="Test different types of Modal windows">
                <XS_Button ButtonType=XS_ButtonType.button ButtonText="Modal at Top" IconName=XS_IconName_SVG.web_asset_black_24dp_GoogleIcon IsBusy="@_IsBusy" IsDisabled="@_IsBusy" OnClick="@(() => ShowModal(XS_CSS_VerticalAlignment.Top))" Color="XS_CSS_Color.Info" MarginAll=XS_CSS_SpacingSize.X2><XS_TooltipIcon MarginLeft="XS_CSS_SpacingSize.X2">Open a Modal window at the top of the browser</XS_TooltipIcon></XS_Button>
                <XS_Button ButtonType=XS_ButtonType.button ButtonText="Modal at Middle" IconName=XS_IconName_SVG.web_asset_black_24dp_GoogleIcon IsBusy="@_IsBusy" IsDisabled="@_IsBusy" OnClick="@(() => ShowModal(XS_CSS_VerticalAlignment.Middle))" Color="XS_CSS_Color.Info" MarginAll=XS_CSS_SpacingSize.X2><XS_TooltipIcon MarginLeft="XS_CSS_SpacingSize.X2" Orientation="XS_IconInfo_Orientation.Bottom">Open a Modal window in the middle of the browser</XS_TooltipIcon></XS_Button>
                <XS_Button ButtonType=XS_ButtonType.button ButtonText="Reset" IsDisabled="@(!@_IsBusy)" OnClick="@(() => { _IsBusy = false; })" Color="XS_CSS_Color.Info" MarginAll=XS_CSS_SpacingSize.X2 IconName=XS_IconName_SVG.refresh_black_24dp_GoogleIcon><XS_TooltipIcon MarginLeft="XS_CSS_SpacingSize.X2" Orientation="XS_IconInfo_Orientation.Right">Reset the Modal Window Buttons</XS_TooltipIcon></XS_Button>
            </XS_Tab>
            <XS_Tab Label="Alerts" IsDefault="false" IconName="XS_IconName_SVG.Important_FluentUI">
                <XS_Button Color=XS_CSS_Color.Primary ButtonText="Show Primary" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.question_circle_SVGRepo MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageBody = $"This is a <strong>Primary</strong> messsage <br/> {DateTime.Now}", Color = XS_CSS_Color.Primary, MinHeight = 50}); })" />
                <XS_Button Color=XS_CSS_Color.Secondary ButtonText="Show Secondary" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.question_circle_SVGRepo MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageBody = $"This is a <strong>Secondary</strong> message <br/> {DateTime.Now}", Color = XS_CSS_Color.Secondary, MinHeight = 50}); })"></XS_Button>
                <XS_Button Color=XS_CSS_Color.Info ButtonText="Show Info" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.info_circle_duo_tone_2_SVGRepo MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageHeader="<h4>This is <strong>Informational!</stong></h4>",MessageBody = $"<strong>Info</strong> message at {DateTime.Now}", Color = XS_CSS_Color.Info, MinHeight = 50}); })" />
                <XS_Button Color=XS_CSS_Color.Success ButtonText="Show Success" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.thumb_up_black_24dp_GoogleIcon MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageHeader="<h4>This is a <strong>Success!</strong> </h4>",MessageBody = $"<strong>Success</strong> message at {DateTime.Now}", Color = XS_CSS_Color.Success, MinHeight = 50}); })" />
                <XS_Button Color=XS_CSS_Color.Warning ButtonText="Show Warning" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.warning_2_SVGRepo MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageHeader="<h4>This is a <strong><em>Warning!</em></strong></h4>",MessageBody = $"<strong>Warning</strong> at {DateTime.Now}</h4>", Color = XS_CSS_Color.Warning, MinHeight = 50, BlurPage = true}); })" />
                <XS_Button Color=XS_CSS_Color.Danger ButtonText="Show Danger" ButtonType=XS_ButtonType.button IconName=XS_IconName_SVG.danger_triangle_SVGRepo MarginAll=XS_CSS_SpacingSize.X2 OnClick="@(async () => { await MyAlert.Show(new XS_AlertItemProperties {MessageHeader="<h2>This is really <strong><em>Dangerous!</em></strong></h2>",MessageBody = $"<strong>Oh no!!</strong> at {DateTime.Now}", Color = XS_CSS_Color.Danger, MinHeight = 50, BlurPage = true, DimPage = true, BlockPage = true}); })" />
            </XS_Tab>
            <XS_Tab Label="Donut Chart" IconName="XS_IconName_SVG.pie_chart_2_SVGRepo">
                <XS_PieChart @ref=TestPieChart ShowTotal=true ShowValues=true ShowPercentages=true Height=150 Width=150 IsDonut=true MarginTop=XS_CSS_SpacingSize.X4 MarginBottom=XS_CSS_SpacingSize.X4 MarginLeft=XS_CSS_SpacingSize.X2>
                    <XS_PieChart_Header>
                        <XS_Header Size="XS_CSS_HeaderSize.H5">@TestPieChartTitle</XS_Header>
                    </XS_PieChart_Header>
                    <XS_PieChart_Slices>
                        <XS_PieChart_Slice Color="--success" Value=Chart_success_val Label="Success" />
                        <XS_PieChart_Slice Color="--info" Value=Chart_info_val Label="Info" />
                        <XS_PieChart_Slice Color="--danger" Value=Chart_danger_val Label="Danger" />
                        <XS_PieChart_Slice Color="--warning" Value=Chart_warning_val Label="Warning" />
                        <XS_PieChart_Slice Color="--primary" Value=Chart_primary_val Label="Primary" />
                        <XS_PieChart_Slice Color="--secondary" Value=Chart_secondary_val Label="Secondary" />
                        <XS_PieChart_Slice Color="pink" Value=Chart_pink_val Label="Pink" />
                    </XS_PieChart_Slices>
                    <XS_PieChart_Footer>
                        <XS_Button ButtonText="<em>Randomize</em> Data" OnClick=RandomizeChartData ButtonType=XS_ButtonType.submit Color=XS_CSS_Color.Info IconName=XS_IconName_SVG.magicpen_SVGRepo>
                            <XS_TooltipIcon MarginLeft="XS_CSS_SpacingSize.X2">Click to Randomize the data</XS_TooltipIcon>
                        </XS_Button>
                    </XS_PieChart_Footer>
                </XS_PieChart>
            </XS_Tab>
        </XS_TabList>
    </XS_TabHorizontal>

    <XS_Break NumOfBreaks="1" />

</XS_Page_Content>


@code {
    [CascadingParameter]
    private Task<AuthenticationState>? authenticationState { get; set; }

    XS_Page_Content MyPageContent = new();
    XS_Alert MyAlert = new();
    XS_Modal MyModal = new();
    XS_Modal MyIcon_Modal = new();
    XS_CSS_VerticalAlignment MyModalPos = new();
    XS_CSS_Color PillColor = XS_CSS_Color.Primary;

    XS_IconName_SVG MyIconModal_Body = new();

    string pill_progressTest_text = string.Empty;
    XS_ProgressBar progressBar_main = new XS_ProgressBar();


    private XS_PieChart TestPieChart = new();
    private string TestPieChartTitle = "OLD Random Nums";
    private int Chart_pink_val = 0;
    private int Chart_primary_val = 0;
    private int Chart_secondary_val = 0;
    private int Chart_success_val = 0;
    private int Chart_warning_val = 0;
    private int Chart_danger_val = 0;
    private int Chart_info_val = 0;

    DateTime? TheDate = DateTime.Now;
    string BackgroundColor = string.Empty;
    string PanelBackgroundColor = string.Empty;
    string PanelFooterBackgroundColor = string.Empty;
    string BorderColor = string.Empty;

    private bool _IsBusy { get; set; } = false;
    private string MyModalHeaderText { get; set; } = string.Empty;
    private string MyIconModal_HeaderText { get; set; } = string.Empty;
    private string MyModalBodyText { get; set; } = string.Empty;
    private string MyModalBodyHTML { get; set; } = string.Empty;
    private bool _IsDisabled { get; set; } = false;


    private int progress_value { get; set; } = 0;
    private bool _startTimer_isDisabled { get; set; } = false;

    private string UserName { get; set; } = string.Empty;
    private string PreferredUserName { get; set; } = string.Empty;
    private bool HasAdminRole { get; set; } = false;
    private bool HasReadOnlyRole { get; set; } = false;

    #region init methods

    protected override async Task OnInitializedAsync()
    {
        await Task.Run(() => { });
        if (authenticationState is not null)
        {
            var state = await authenticationState;


            UserName = state?.User.Claims
                  .Where(c => c.Type.Equals("name"))
                  .Select(c => c.Value)
                  .FirstOrDefault() ?? string.Empty;

            PreferredUserName = state?.User.Claims
                  .Where(c => c.Type.Equals("preferred_username"))
                  .Select(c => c.Value)
                  .FirstOrDefault() ?? string.Empty;

            if (state.User.IsInRole("admin"))
            {
                HasAdminRole = true;
            }

            if (state.User.IsInRole("read-only"))
            {
                HasReadOnlyRole = true;
            }

        }

        await RandomizeChartData();
    }
    #endregion

    #region methods
    private async Task ShowModal(XS_CSS_VerticalAlignment arg_thePos)
    {
        MyModalPos = arg_thePos;
        MyModalHeaderText = $"Modal positioned at <em><strong>{arg_thePos.ToString()}</strong></em>";
        MyModalBodyText = "!Normal Body Text!";
        MyModalBodyHTML = $"<strong>HTML</strong> style test with <strong>line break</strong> here<br/><em>New line here.</em><br/>Time={TheDate}";
        _IsBusy = true;
        _IsDisabled = true;
        await MyModal.Show();
    }

    private async Task ClickSVGIcon(XS_IconName_SVG IconName)
    {
        MyIconModal_HeaderText = $"Icon Clicked";
        MyModalBodyHTML = $"Clicked on <strong><em>{IconName.ToString()}</em></strong>.";
        MyIconModal_Body = IconName;
        await MyIcon_Modal.Show();
    }


    protected async Task RandomizeChartData()
    {
        var lowerBound = 500;
        var upperBound = 2000;

        Chart_pink_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_primary_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_secondary_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_success_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_warning_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_danger_val = MiscFunctions.getRandomNum(lowerBound, upperBound);
        Chart_info_val = MiscFunctions.getRandomNum(lowerBound, upperBound);

        if (TestPieChart is not null)
        {
            TestPieChartTitle = $"Random Numbers @ {TimeDateFunctions.TimeStampShort}";
            await TestPieChart.Refresh();
        }
    }

    protected async Task SetProgress(int arg_value)
    {
        await progressBar_main.SetValue(arg_value);
    }
    protected async Task StartProgressTimer()
    {
        await Task.Run(() => { });
        _startTimer_isDisabled = true;
        for (int x = 0; x < 6; x++)
        {
            MiscFunctions.sleepForSeconds(1);

            //await MiscFunctions.sleepForSecondsAsync(1);
            //var result = Waiter(1).GetAwaiter().GetResult();


            //progress_value = x;
            await progressBar_main.SetValue(x);
            pill_progressTest_text = $"{x} of {progressBar_main.Max}";
            StateHasChanged();
        }
        _startTimer_isDisabled = false;
    }
    protected async Task StartProgressTimer_new()
    {
        //await Task.Run(() => { });
        _startTimer_isDisabled = true;
        for (int x = 0; x < 6; x++)
        {
            //await MiscFunctions.sleepForSecondsAsync(1);
            //MiscFunctions.sleepForSeconds(1);
            //var task = Task.Run(async () => await Waiter(1));
            //var result = task.Result; // This will block until the task completes
            var result = Waiter(1).GetAwaiter().GetResult();
            //var result = Task.Run(() => Waiter(1)).GetAwaiter().GetResult();
            progress_value = x;
            await InvokeAsync(StateHasChanged);
            //StateHasChanged();
        }
        _startTimer_isDisabled = false;
    }
    protected async Task<string> Waiter(int arg_sleep_time)
    {
        await Task.Run(() => { });
        //MiscFunctions.sleepForSeconds(arg_sleep_time);
        await MiscFunctions.sleepForSecondsAsync(arg_sleep_time);
        return "5";
    }
    #endregion
}

3.7.2. Counter.razor

Create the Pages\Counter.razor file:

Expand for Pages\Counter.razor source

@page "/Counter"

<XS_PageTitle><strong>Counter</strong> = @currentCount</XS_PageTitle>

@if (HasReadOnlyRole)
{
    <XS_Panel Panel_Header_Content_Center="true" Panel_Title_Content_Center="true" Panel_Body_Content_Center="true">

        <XS_Panel_Header><XS_Header Size="XS_CSS_HeaderSize.H4">Counter Demo</XS_Header></XS_Panel_Header>

        <XS_Panel_Title>

            <XS_Button ButtonText="Increment" OnClick="@( () => UpdateCount(1) )" IconName=XS_IconName_SVG.add_black_24dp_GoogleIcon Color=XS_CSS_Color.Success MarginAll=XS_CSS_SpacingSize.X2>
                <XS_TooltipIcon TextColor="XS_CSS_Color.Success" Orientation="XS_IconInfo_Orientation.Top" MarginLeft="XS_CSS_SpacingSize.X2">Add to the current count</XS_TooltipIcon>
            </XS_Button>

            <XS_Button ButtonText="Decrement" OnClick="@( () => UpdateCount(-1) )" IconName=XS_IconName_SVG.remove_black_24dp_GoogleIcon Color="XS_CSS_Color.Warning">
                <XS_TooltipIcon TextColor="XS_CSS_Color.Warning" Orientation="XS_IconInfo_Orientation.Top" MarginLeft="XS_CSS_SpacingSize.X2">Subtract from the current count</XS_TooltipIcon>
            </XS_Button>

            <XS_Button ButtonText="Reset to 0" OnClick="@( () => UpdateCount(0) )" ButtonType=XS_ButtonType.reset IconName=XS_IconName_SVG.restart_alt_black_24dp_GoogleIcon Color=XS_CSS_Color.Danger MarginAll=XS_CSS_SpacingSize.X3 IsDisabled=disableResetButton>
                <XS_TooltipIcon TextColor="XS_CSS_Color.Danger" Orientation="XS_IconInfo_Orientation.Top" MarginLeft="XS_CSS_SpacingSize.X2">Reset current count to 0</XS_TooltipIcon>
            </XS_Button>

        </XS_Panel_Title>

        <XS_Panel_Body>

            <XS_Pill Color="@PillColor">
                Current count: @currentCount
                <XS_TooltipIcon Orientation="XS_IconInfo_Orientation.Right" TextColor="@PillColor">@($"The current count at {currentCount}")</XS_TooltipIcon>
            </XS_Pill>

        </XS_Panel_Body>

    </XS_Panel>
}
else
{
    <h1>Sorry but you need Read Only role in order to access this page!</h1>
}

@code {
    [CascadingParameter]
    private Task<AuthenticationState>? authenticationState { get; set; }
    private bool HasAdminRole { get; set; } = false;
    private bool HasReadOnlyRole { get; set; } = false;

    private XS_CSS_Color PillColor = XS_CSS_Color.Info;
    private int currentCount = 0;
    private bool disableResetButton = true;

    protected override async Task OnInitializedAsync()
    {
        if (authenticationState is not null)
        {
            var state = await authenticationState;

            // Test for Roles
            if (state.User.IsInRole("admin"))
            {
                HasAdminRole = true;
            }
            if (state.User.IsInRole("read-only"))
            {
                HasReadOnlyRole = true;
            }

        }
    }
    private async Task UpdateCount(int arg_increment_amount)
    {
        await Task.Run(() => { });



        if (arg_increment_amount == 0)
        {
            currentCount = 0;
        }
        else
        {
            currentCount = currentCount + arg_increment_amount;
        }

        if (currentCount == 0)
        {
            disableResetButton = true;
            PillColor = XS_CSS_Color.Info;
        }
        else if (currentCount > 0)
        {
            disableResetButton = false;
            PillColor = XS_CSS_Color.Success;
        }
        else if (currentCount < 0)
        {
            disableResetButton = false;
            PillColor = XS_CSS_Color.Warning;
        }
    }
}

3.7.3. Footer.razor

Create Shared\Footer.razor file:

Expand for Shared\Footer.razor source

@page "/Footer"

<XS_Panel>
    <XS_Panel_Body>
        <ul>
            <li>We welcome your feedback.</li>
            <li>If you are in need of technical support, please contact the <XS_MailTo Address="martinezc@xackleystudio.com">XS</XS_MailTo> support team</li> (1)
        </ul>
    </XS_Panel_Body>
</XS_Panel>

@{
}

1	Update with applicable contact info.

3.7.4. LoginDisplay.razor

Create the Shared\LoginDisplay.razor file:

Expand for Shared\LoginDisplay.razor source

<!--When testing locally, on this project's properties, go to Debug-> Web Server Settings.  make sure 'Anonymous Authentication' is disabled and 'Windows Authentication' is enabled-->
<!--On the remote IIS, under Authentication, make sure 'Anonymous Authentication' is disabled and 'Windows Authentication' is enabled-->
<AuthorizeView>
    <Authorized>
        <XS_AuthorizedView_Authorized>
            <XS_DropdownButton Label="" IconName=XS_IconName_SVG.user_check_SVGRepo Color="XS_CSS_Color.Success">
                <XS_Link IconName="XS_IconName_SVG.logout_2_SVGRepo" IconColor="XS_CSS_Color.Danger" Url="MicrosoftIdentity/Account/SignOut">Log out</XS_Link>
            </XS_DropdownButton>
            @context?.User?.Identity?.Name
        </XS_AuthorizedView_Authorized>
    </Authorized>
    <NotAuthorized>
        <XS_AuthorizedView_NotAuthorized>
            <XS_DropdownButton Label="" IconName=XS_IconName_SVG.user_block_SVGRepo Color="XS_CSS_Color.Danger">
                <XS_Link IconName="XS_IconName_SVG.login_2_SVGRepo" Url="MicrosoftIdentity/Account/SignIn">Log In</XS_Link>
            </XS_DropdownButton>
            Logged out.
        </XS_AuthorizedView_NotAuthorized>
    </NotAuthorized>
</AuthorizeView>

3.7.5. NavMenu.razor

Create the Shared\NavMenu.razor file:

Expand for Shared\NavMenu.razor source

@using Microsoft.AspNetCore.Components.Authorization
@using System.Security.Claims

<XS_Bar>
    <XS_BarBrand IconName="XS_IconName_SVG.XackleyStudio_XS" IconSize=24><XS_Header Size=XS_CSS_HeaderSize.H4>Component Tester</XS_Header></XS_BarBrand> (1)
    <XS_BarStart>
        <XS_BarItem IconName="XS_IconName_SVG.Home_FluentUI" Url="/">Home</XS_BarItem>
        <XS_BarDropdownMenu IconName="XS_IconName_SVG.Education_FluentUI" Label="About">
            <XS_BarDropdownMenuItem IconName="XS_IconName_SVG.Documentation_FluentUI" Url="/ReleaseNotes">Release Notes</XS_BarDropdownMenuItem>
        </XS_BarDropdownMenu>
        <XS_BarDropdownMenu IconName="XS_IconName_SVG.TestBeakerSolid_FluentUI" Label="Test">
            <XS_BarDropdownMenuItem IconName="XS_IconName_SVG.CircleAddition_FluentUI" Url="/Counter">Counter</XS_BarDropdownMenuItem>
            <XS_BarDropdownMenuItem IconName="XS_IconName_SVG.PlugDisconnected_FluentUI" Url="/BrokenLink">Broken Link</XS_BarDropdownMenuItem>
        </XS_BarDropdownMenu>
        <XS_UserPrefsMenu Label="Prefs" InitialCssTheme="XS-Theme-Light" InitialCssFont="XS-Font-Outfit" LocalStoragePrefix="XS-Component-Tester"> (2)
            <XS_UserPrefsThemeMenuItems>
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Light" DisplayName="Light" />
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Light-Gray" DisplayName="Light Gray" />
                <XS_Divider />
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Dark-Gray" DisplayName="Dark Gray" />
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Dark-Blue1" DisplayName="Dark Blue 1" />
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Dark-Blue2" DisplayName="Dark Blue 2" />
                <XS_UserPrefsThemeMenuItem CssClassName="XS-Theme-Neon-Black" DisplayName="Neon Black" />
            </XS_UserPrefsThemeMenuItems>
            <XS_UserPrefsFontMenuItems>
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Comfortaa" DisplayName="Comfortaa" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Fira" DisplayName="Fira" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Montserrat" DisplayName="Montserrat" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Nunito-Sans" DisplayName="Nunito" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Open-Sans" DisplayName="Open Sans" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Outfit" DisplayName="Outfit" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Quicksand" DisplayName="Quicksand" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Roboto" DisplayName="Roboto" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Source-Code" DisplayName="Source Code" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Titillium" DisplayName="Titillium" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Ubuntu" DisplayName="Ubuntu" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Varela-Round" DisplayName="Varela Round" />
                <XS_UserPrefsFontMenuItem CssClassName="XS-Font-Comic-Neue" DisplayName="Comic Neue" />
            </XS_UserPrefsFontMenuItems>
        </XS_UserPrefsMenu>
    </XS_BarStart>
    <XS_BarEnd>
        <XS_BarEndItem>
            <LoginDisplay />
        </XS_BarEndItem>
        <XS_BarEndItem>
            <XS_Link IconName="XS_IconName_SVG.help_black_24dp_GoogleIcon"
                     Url="https://techdocs.xackleystudio.com/xackley-tech-docs/1.0/Programming/XS/XS-Blazor-Components-Consumers-Guide.html">
                UI Doc
            </XS_Link>
        </XS_BarEndItem>
    </XS_BarEnd>
</XS_Bar>

1	Your site’s `Bar Brand`.
2	Change the `LocalStoragePrefix` to a name that is applicable to your site.

3.7.6. MainLayout.razor

Edit the Shared\MainLayout.razor file

Expand for Shared\MainLayout.razor source

@inherits LayoutComponentBase

<NavMenu/>
<XS_MainLayout>
    <XS_ContainerFluidRow>
        <XS_ContainerFluidColumn>
            <XS_Divider />
            <XS_Break />
        </XS_ContainerFluidColumn>
    </XS_ContainerFluidRow>
    <XS_ContainerFluidRow>
        <XS_ContainerFluidColumn>
            @Body
        </XS_ContainerFluidColumn>
    </XS_ContainerFluidRow>
    <XS_ContainerFluidRow>
        <XS_ContainerFluidColumn>
            <XS_Break />
            <XS_Divider />
        </XS_ContainerFluidColumn>
    </XS_ContainerFluidRow>
    <XS_ContainerFluidRow>
        <XS_ContainerFluidColumn>
            <Footer />
        </XS_ContainerFluidColumn>
    </XS_ContainerFluidRow>
    <XS_ContainerFluidRow>
        <XS_ContainerFluidColumn>
            <XS_Break />
        </XS_ContainerFluidColumn>
    </XS_ContainerFluidRow>
</XS_MainLayout>

3.7.7. App.razor

Not for MAUI

Edit the App.razor file for non-MAUI web apps:

Expand for App.razor source

<CascadingAuthenticationState>
    <Router AppAssembly="@typeof(Program).Assembly" PreferExactMatches="@true">
        <Found Context="routeData">
            <AuthorizeRouteView RouteData="@routeData" DefaultLayout="@typeof(MainLayout)" />
        </Found>
        <NotFound>
            <LayoutView Layout="@typeof(MainLayout)">
                <XS_Panel>
                    <XS_Panel_Header><XS_Header Size="XS_CSS_HeaderSize.H3">Page Not Found!</XS_Header></XS_Panel_Header>
                    <XS_Panel_Body>
                        Sorry, there's nothing at this address...
                    </XS_Panel_Body>
                </XS_Panel>
            </LayoutView>
        </NotFound>
    </Router>
</CascadingAuthenticationState>

3.7.8. Main.razor `MAUI`

For MAUI

For MAUI apps edit the Main.razor source

Expand for Main.razor source

<Router AppAssembly="@typeof(Main).Assembly">
    <Found Context="routeData">
        <RouteView RouteData="@routeData" DefaultLayout="@typeof(MainLayout)" />
        <FocusOnNavigate RouteData="@routeData" Selector="h1" />
    </Found>
    <NotFound>
        <PageTitle>Not found</PageTitle>
        <LayoutView Layout="@typeof(MainLayout)">
            <XS_Panel>
                <XS_Panel_Header><XS_Header Size="XS_CSS_HeaderSize.H3">Page Not Found!</XS_Header></XS_Panel_Header>
                <XS_Panel_Body>
                    Sorry, there's nothing at this address...
                </XS_Panel_Body>
            </XS_Panel>
        </LayoutView>
    </NotFound>
</Router>

3.8. Configure Project

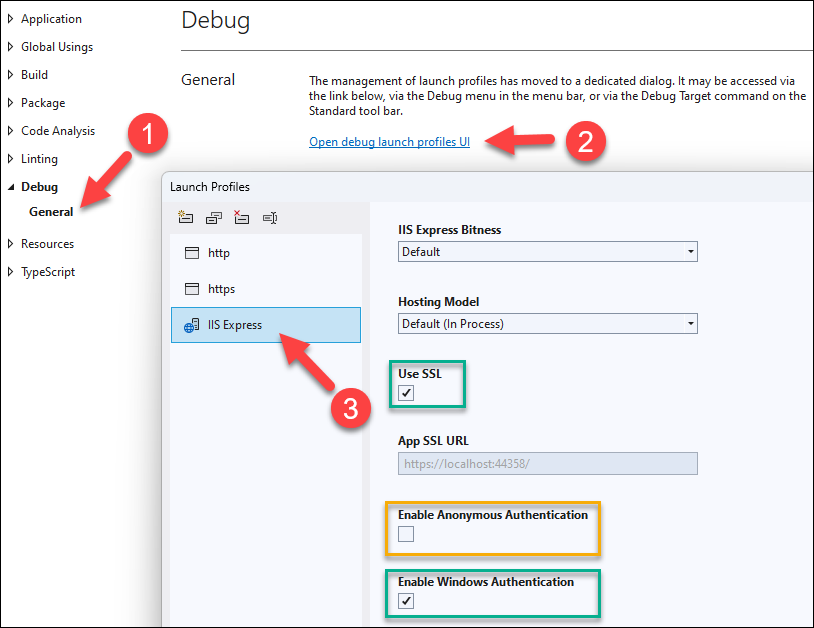

3.8.1. Confirm `Windows Authentication` for Local Testing

Open this project’s properties and confirm the following (these values should already be set):

Attach to Process

3.9. Blazor Server Hot-Reload

There’s a more robust version of Hot Reload built into the lastest version of VS 2019 and it is a standard feature in Visual Studio 2022. Some of the following instructions may no longer be applicable.

3.9.1. Initiate Hot-Reload

This functionality requires Node.js to be installed.

Start the Developer PowerShell by right clicking on the project and selecting Open In Terminal

**********************************************************************
** Visual Studio 2022 Developer PowerShell v17.1.2
** Copyright (c) 2022 Microsoft Corporation
**********************************************************************
PS C:\Users\<user_name>\source\repos\GitLab\repo-dot-net-core\Com.XS.Spa.Accounting\Com.XS.Spa.Accounting>

Run the dotnet watch run command.

PS C:\Users\<user name>\source\repos\GitLab\repo-dot-net-core\Com.XS.Spa.Accounting\Com.XS.Spa.Accounting> dotnet watch run

dotnet watch 🔥 Hot reload enabled. For a list of supported edits, see https://aka.ms/dotnet/hot-reload.
  💡 Press "Ctrl + R" to restart.
dotnet watch 🔧 Building...
  Determining projects to restore...
  All projects are up-to-date for restore.
dotnet watch 🚀 Started
info: Microsoft.Hosting.Lifetime[14]
      Now listening on: https://localhost:7155
info: Microsoft.Hosting.Lifetime[14]
      Now listening on: http://localhost:5155
info: Microsoft.Hosting.Lifetime[0]
      Application started. Press Ctrl+C to shut down.
info: Microsoft.Hosting.Lifetime[0]
      Hosting environment: Development
info: Microsoft.Hosting.Lifetime[0]

Now you can make changes to source files which will automatically recompile the project as soon as those source files are saved.
```
dotnet watch ⌚ File changed: .\Shared\NavMenu.razor.
dotnet watch 🔥 Hot reload of changes succeeded.
```

To exit use the Ctrl+C key combination.

info: Microsoft.Hosting.Lifetime[0]
      Application is shutting down...
dotnet watch 🛑 Shutdown requested. Press Ctrl+C again to force exit.

3.9.2. Attach the Debugger

Hot Reload will not start the debugger automatically so in order to attach the debugger:

You need to be in a hot-reload session in order for the following to work…

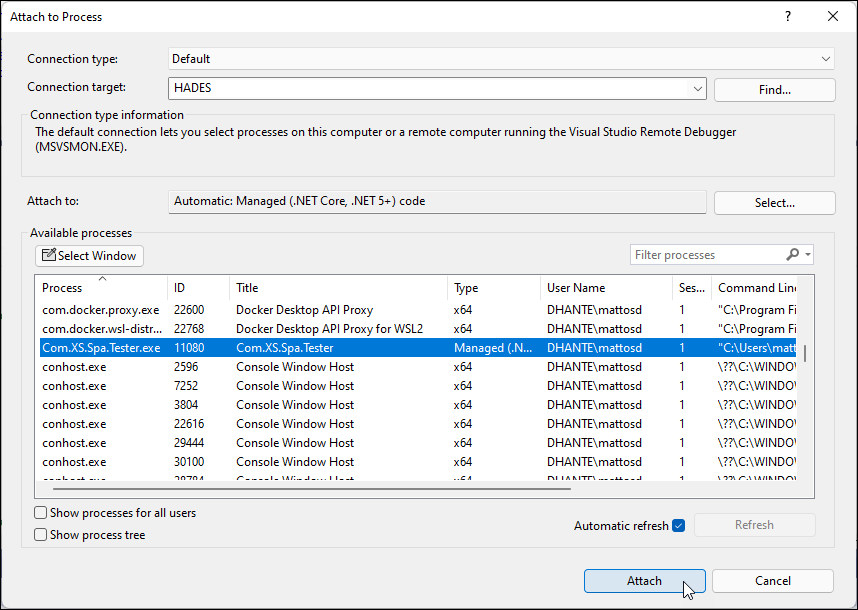

1. Open the Attach to Process window via Debug Attach to Process
2. Now you will need to attach to the debugger to the actual Blazor process. This process has the same name as your starter project:

That’s it. Now you can debug normally via breakpoints.

However, after each file save (which will be followed by a recompile) the debugger will lose the attachment to your process.

In order to resume debugging you can reattach to the last process with the shift + alt + p key combination.

4. Web Server Config

4.1. .Net

For IIS setup, install the hosting runtime:

Browse here and click the Download Hosting Bundle link to download dotnet-hosting-6.x.x-win.exe
Run the executable on the server.

Confirm the version of Microsoft.NETCore.App hosting runtime via the dotnet --list-runtimes command:

Expand to show runtimes list

dotnet --list-runtimes (1)

Microsoft.AspNetCore.All 2.1.5 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.All]
Microsoft.AspNetCore.All 2.2.0 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.All]
Microsoft.AspNetCore.All 2.2.1 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.All]
Microsoft.AspNetCore.App 2.1.5 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 2.2.0 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 2.2.1 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 3.0.0-preview3-19153-02 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 3.0.0-preview8.19405.7 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 3.1.2 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 5.0.4 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App]
Microsoft.AspNetCore.App 6.0.0 [C:\Program Files\dotnet\shared\Microsoft.AspNetCore.App] (2)
Microsoft.NETCore.App 2.1.5 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 2.2.0 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 2.2.1 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 3.0.0-preview8-28405-07 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 3.1.2 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 5.0.4 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]
Microsoft.NETCore.App 6.0.0 [C:\Program Files\dotnet\shared\Microsoft.NETCore.App]

1	Execute this.
2	This is the required runtime.

4.2. Microsoft IIS Authentication

Enable Windows Authentication .
Make NTLM the first Provider in the list of Enabled Providers (This is required for Safari).

IIS Auth Configuration

5. Run in a Docker Container

5.1. Blazor Web Assembly

If you’ve created a Blazor Web Assembly app:
1. Reference this doc.

5.2. Blazor Web Server

If you’ve created a Blazor Web Server app:

5.2.1. Create a Publishing Profile

We will create a Publishing Profile where the target Docker Repo is docker.repo.xackleystudio.com:
1. Within the Solution Explorer window, right mouse click on the project folder and select Publish
2. Click the New profile button
3. Select Docker Container Registry
4. Select Other Docker Container Registry
5. Target Registry URL should be docker.repo.xackleystudio.com
6. Provide credentials if any
7. Select .NET SDK
8. Now you can publish…

5.2.2. Configure the Container

Create a docker compose file:

Sample Docker compose file

version: '3.5'
services:
  kestrel-xs-component-tester:
    container_name: Blazor-Component-Tester
    image: 'docker.repo.xackleystudio.com/com-xs-spa-tester2:latest'
    ports:
      - '8080:80'
    environment:
      - TZ=America/New_York
      - PUID=1000
      - PGID=1000
    volumes:
      - ./XS-Component-Tester-data/logs:/app/logs
    restart: always

XS Blazor UI Components - Comsumers Guide

1. Synopsis

2. Requirements

2.1. .NET 6.x

2.2. Visual Studio 2022

3. Parent Project Setup

3.1. Create new VS Project 7.x

3.2. Create new .NET v8.0 VS Blazor Web App

3.3. Install the XS NuGet Package

3.3.1. Add XS MyGet Package Source

3.3.2. Install the XS.Lib.Blazor.UIComponents NuGet Package

3.3.3. Updating the XS.Lib.Blazor.UIComponents NuGet Package Version

3.3.4. Package Cache

3.4. Custom UI Component Library Integration

3.5. Add Progressive Web Application (PWA) Support

3.5.1. Create Favicons

3.5.2. Create an Offline Page

3.5.3. Create a Manifest File

3.5.4. Create a Service Worker JavaScript file

3.6. Logs Directory

3.6.1. Publishing

3.6.2. Git

3.7. Create Test Pages

3.7.1. Index.razor

3.7.2. Counter.razor

3.7.3. Footer.razor

3.7.4. LoginDisplay.razor

3.7.5. NavMenu.razor

3.7.6. MainLayout.razor

3.7.7. App.razor

3.7.8. Main.razor MAUI

3.8. Configure Project

3.8.1. Confirm Windows Authentication for Local Testing

3.9. Blazor Server Hot-Reload

3.9.1. Initiate Hot-Reload

3.9.2. Attach the Debugger

4. Web Server Config

4.1. .Net

4.2. Microsoft IIS Authentication

5. Run in a Docker Container

5.1. Blazor Web Assembly

5.2. Blazor Web Server

5.2.1. Create a Publishing Profile

5.2.2. Configure the Container

5.2.3. Start the Container

3.3.1. Add XS `MyGet` Package Source

3.3.2. Install the `XS.Lib.Blazor.UIComponents` NuGet Package

3.3.3. Updating the `XS.Lib.Blazor.UIComponents` NuGet Package Version

3.5. Add Progressive Web Application `(PWA)` Support

3.7.8. Main.razor `MAUI`

3.8.1. Confirm `Windows Authentication` for Local Testing
